MOTOR

2 x 250W

SPEED
6.4 km/h

RANGE
UP TO 25KM

REAR WHEELS

12″

BATTERY

2 x 24V 6AH

EASY FOLDING

WEIGHT CAPACITY

160kg

PRODUCT WEIGHT
28kg

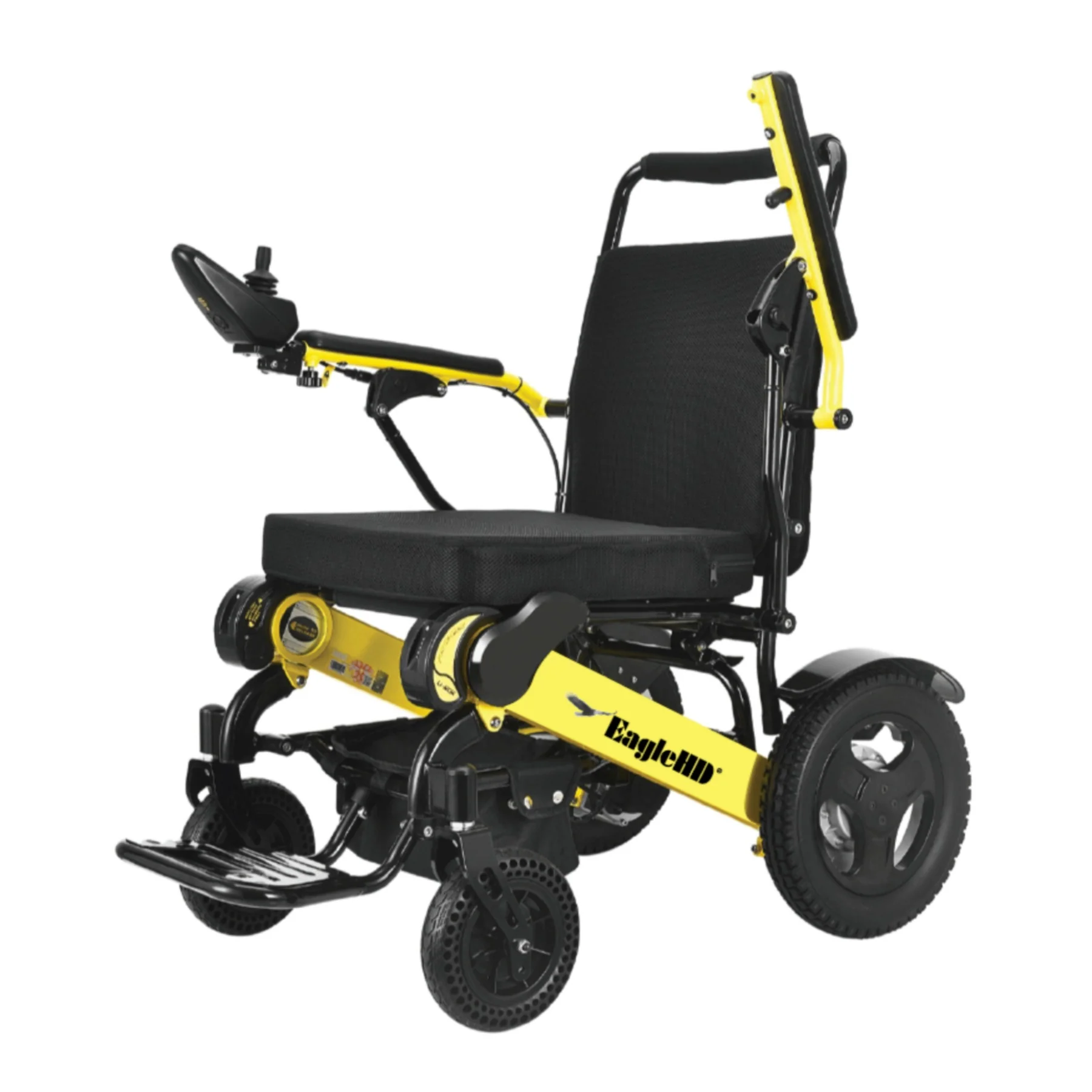

Eagle HD (2nd Gen) Lightweight Powered Wheelchair. 2022 Upgrades

Ideal for someone looking for an extremely lightweight wheelchair at an affordable price with some extra improvements.

This folding lightweight eagle wheelchair is versatile enough to get around the house easily as it spins on its own circle.

The seat on the new Eagle wheelchair is improved with a asymmetrical cushion, which means, the cushion encourages the user to sit better and therefore helps to keep the spine straight.

The cushion promotes good posture and ideal for active users.

This powered wheelchair seat is balanced to maximise centre of gravity so it won’t tilt and easily travels up a 12° hill with ease, even on wet grass and won’t roll back due to its auto-shut down technology.

The 12″ rear wheels has great traction on various terrains and grips on wet grass, wet grass hills, gravel and cobbled paves.

Features

Fits easily into the boot of virtually all sedans.
Small and portable for car, bus, train, and airplane travel.
Safely supports up to 160kg.
Lightweight Aerospace aluminum-alloy frame – No rust.
Eco-Friendly surface treatment thermal transfer paintwork

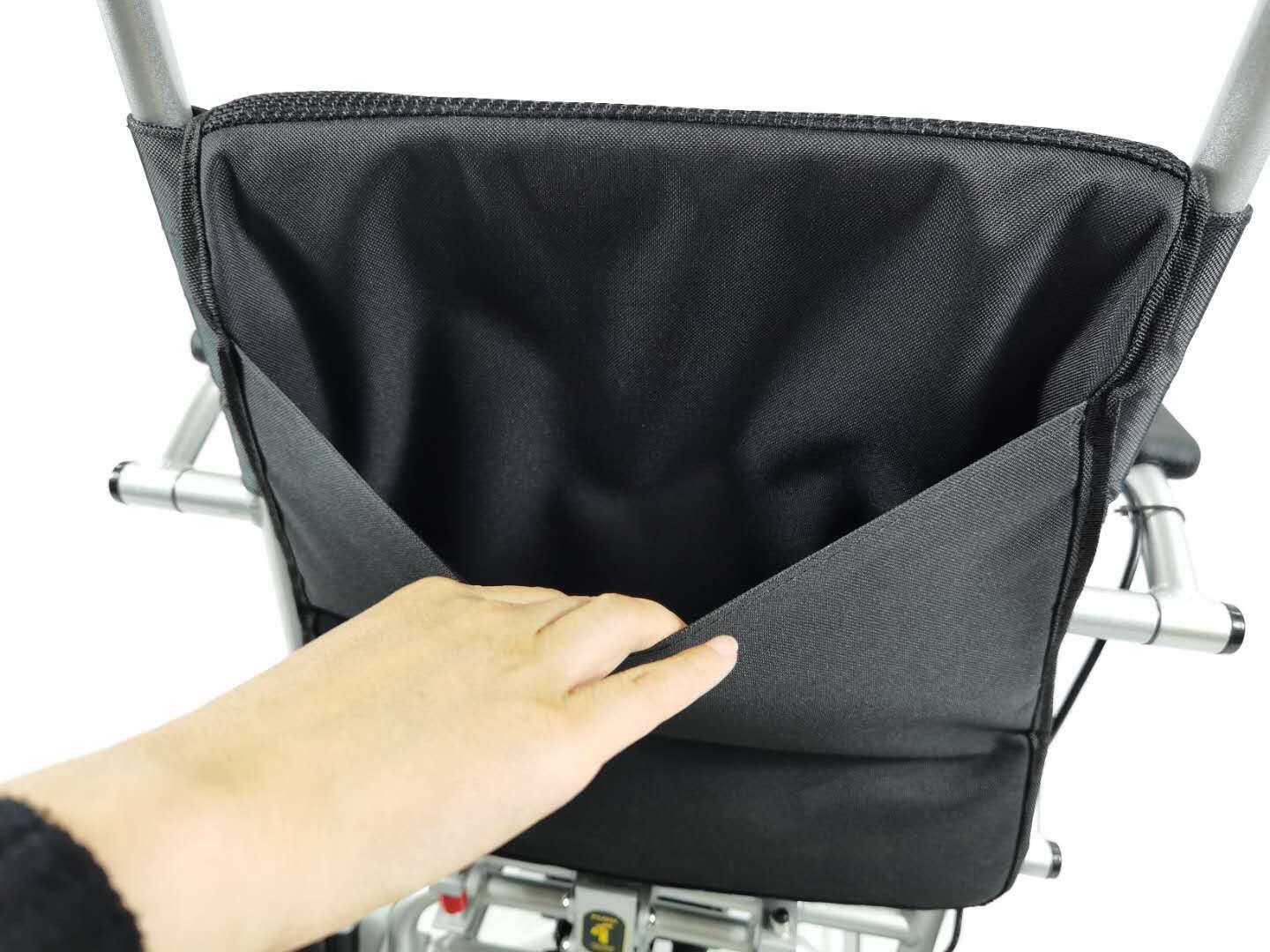

Removable, washable seat cushion and back rest.
Solid front and rear tyres – no more punctures.
Flip-up foot rest.
360° joystick controller – Reliable & easy to use.
150cm ground clearance – comparable with all-terrain models.
Quiet brushless motors.
Intelligent auto handle system with manual release.
Reliable and precise battery-life indicator.
24V/6AH Lithium battery – chargeable on board.
Joystick Folding Mechanism.
Asymmetrical Cushion.
Easily travels on different surfaces – Gravel – Grass – Cobbled.
Choice of colours: Black – Silver – Yellow/Black – Silver/Black

SPECIFICATIONS

Specifications	Eagle Bariatric Power Wheelchair
Battery Weight	1.5kg x 2
Weight with Batteries	27.3kg
Weight without Batteries	23.7kg
Weight Capacity	160kg
Battery Range	upto 25km
Li-Ion Battery	24V 6Ah x2
Battery Life (in/output)	1000 cycles
Battery Location	Near seat height
Maximum Speed	6.4km/h
Swivel Joystick	Yes
Brushless Joystick	Yes
Motor	250W x 2DC 24V Brushless
Armrest Filp Up	Yes
Width Between Armrests	48cm
Seat Padding/Cushion	Asymmetrical
Seat W x D	47x 45cm
Adjustable Seating	Tension velcro
Adjustable Backrest	Tension velcro
Suspension	Yes front & rear
Tyres	Solid Puncture Proof
Front Tyre (suspension)	Perforated
Rear	Solid PU
Dimensions L x W x H	110x600x740cm
Dimensions When Folded	400x600x740cm
Distance Between Armrests	500mm
Drive Wheel	304mm
Foot Room	N/A
Front Wheel	178mm
Ground Clearance	175mm
Seat Dimensions (W x D)	470mm x 430mm
Seat Height From Footplate	390mm
Seat Height From Ground	500mm
Slope Ability	12°
Turning Circle (turns on own circle	850mm
Wheel to Wheel	500mm

Important Safety Information:

Please read and follow all safety instructions and the manufacturer’s user manual before operating or charging this product. Improper use or charging (including unattended or in confined spaces) may result in damage, injury, or fire.

Compliance Disclaimer:

As a reseller, we offer products as supplied by the manufacturer or distributor. We ensure products are sold with their provided documentation and representations regarding compliance. For any specific compliance certifications, please refer to the manufacturer’s details or contact us for more information.

Battery Disclaimer

Safety & The Law

Eagle

Eagle HD 2022 Foldable Electric Mobility Wheelchair
